MCB Stage-1 Top-end rebuild kit / Premium Forged Piston kit 2016-24 Polaris RZR Turbo XP & XP Pro replaces 2206217 and 2206216
Top-end rebuild kit / Piston kit 2016-24 Polaris RZR Turbo XP, 2206216,2206217
23430986

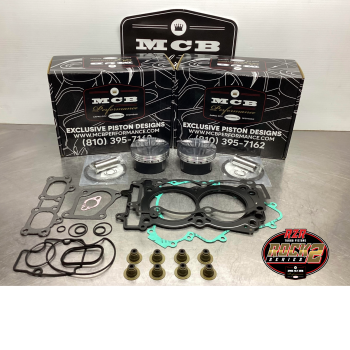

MCB Stage-1 Top-end rebuild kit for the 2016-2024 Polaris FACTORY Turbo (925) engines. Kit includes:
2 - MCB CUSTOM FORGED Premium pistons (9.44-1 compression) with reverse dome and larger Intake-reliefs over stock (if you are stepping up your cam/timing). These MCB Custom pistons are forged from 2618T/L alloy that is light years ahead of the standard 4032 material and offers a huge upgrade in ductility, form retention, dome strength, and ring groove rigidity. This is absolutely the correct material for any Turbo and Race use. We have designed this piston with a semi-full round skirting for incredible stability and wear characteristics'. Further MCB has added double annular, forced pin oiling to ensure the highly stressed pins get adequate lubrication. Lastly the ring stack has been lowered, anti-detonation machining employed as well as pressure balance groove added when the waste-gate doesn't actuate quick enough and overwhelms the ring margins.
Kit also includes .160 thick wall tool steel pins, sure seat clips, and the best Gas-Nitride Ring set you can buy with Napier second rings! Lastly we include GENUINE Cometic HEAD gaskets to keep all that boost sealed. Top-End Gasket kit includes everything pictured with Stainless turbo and gate' gaskets! This kit is a drop-in, massive upgrade for the factory Polaris piston 2206216.
Premium MCB quality at a GREAT price.
IMPORTANT NOTE: IF YOU ARE ADDING AN AFTERMARKET TURBO KIT TO YOUR STANDARD 1000 WE HAVE A CUSTOM PISTON FOR THAT APPLICATION AS WELL. EMAIL OUR TECH DEPT WITH YOUR TURBO AND ENGINE SPECS AND WE CAN SUPPLY YOU WITH EVERYTHING YOU WILL NEED!
Need a TURBO Cylinder? Click on the suggestion below.
2 - MCB CUSTOM FORGED Premium pistons (9.44-1 compression) with reverse dome and larger Intake-reliefs over stock (if you are stepping up your cam/timing). These MCB Custom pistons are forged from 2618T/L alloy that is light years ahead of the standard 4032 material and offers a huge upgrade in ductility, form retention, dome strength, and ring groove rigidity. This is absolutely the correct material for any Turbo and Race use. We have designed this piston with a semi-full round skirting for incredible stability and wear characteristics'. Further MCB has added double annular, forced pin oiling to ensure the highly stressed pins get adequate lubrication. Lastly the ring stack has been lowered, anti-detonation machining employed as well as pressure balance groove added when the waste-gate doesn't actuate quick enough and overwhelms the ring margins.
Kit also includes .160 thick wall tool steel pins, sure seat clips, and the best Gas-Nitride Ring set you can buy with Napier second rings! Lastly we include GENUINE Cometic HEAD gaskets to keep all that boost sealed. Top-End Gasket kit includes everything pictured with Stainless turbo and gate' gaskets! This kit is a drop-in, massive upgrade for the factory Polaris piston 2206216.
Premium MCB quality at a GREAT price.
IMPORTANT NOTE: IF YOU ARE ADDING AN AFTERMARKET TURBO KIT TO YOUR STANDARD 1000 WE HAVE A CUSTOM PISTON FOR THAT APPLICATION AS WELL. EMAIL OUR TECH DEPT WITH YOUR TURBO AND ENGINE SPECS AND WE CAN SUPPLY YOU WITH EVERYTHING YOU WILL NEED!
Need a TURBO Cylinder? Click on the suggestion below.
Pricing:
$569.95
Description
CUSTOM MCB RZR Factory Turbo piston kit with Cometic gasket set
Details
- 23430986
- 23430986
- MCB
- New
Categories
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W9.0000” x H6.0000” x L12.0000”
