Secondary driven clutch BRP CAN-AM Maverick X3 R, RR, RS, DS, MAX, XMR, 1000R, Maverick X3 MAX 2017-24 (Turbo)

Best secondary driven clutch for Can Am Maverick X3-R, RR turbo 1000

SKU: 23431317

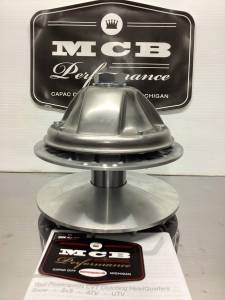

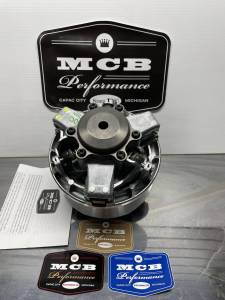

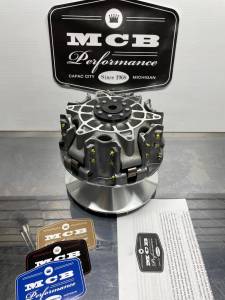

Complete secondary driven clutch for Can Am Maverick X3-R, and RR 2017-current. Clutch comes fully assembled / calibrated ready to mount and ride. If have have a tune, larger tires, or other modifications we will custom calibrate it for you here before it leaves with the proper secondary spring and or helix. If have significant mods we can also supply or recommend primary spring and weight changes to go in conjunction with our secondary calibration. Comes with a 1 year manufacturer warranty.

Option to choose OEM BRP secondary or MCB version at checkout.

FITS:
Maverick X3-R, RR (all options RS,DS,MAX,XMR) 2017-current 2 and 4 seater.
If you are unsure, simply send an email to MCB@MCBperformance.com
Maybe need a primary? We have combination kits with complete fully calibrated primary and secondary applications.

What you will receive:

- 1 OEM BRP or MCB version X3 style secondary (your choice at checkout) fully calibrated with a custom MCB billet helix and spring.
- 1 Set of instructions with torque values via QR code card.
- 1 Assistance before, during and after the sale.

MCB uses machined billet helixes in all our secondary set ups unless you choose to purchase the OEM version and you have stock HP and tire size. Then you will receive an all stock BRP secondary with a factory cast helix. Machined billet helixes are considerably more precise as compared to cast helixes. Machining guarantees exact spacing for equal load and 100% full roller contact on all three ramps. This eliminates any off-angle binding for more precise performance and longevity. The billet material is harder than cast and has higher resistance to allowing debris to embed in the ramps resulting in grooved rollers.

The MCB version secondary also uses our exclusive "Tuff Wheel Rollers". These rollers were originally developed for the Ski Doo line of snowmobiles. Significant dynamic load and impact testing was done at extreme temperatures. This testing resulted in a roller material that has been validated in the field for several years now. To date MCB has yet to see one of our Tuff Wheel Rollers fail on an X3 or Defender SxS!

Replaces 420280636 sliding pulley assembly, 420280626 outer half pulley assembly, 420686738 driven pulley

Pricing: $639.95

Customize Your Item

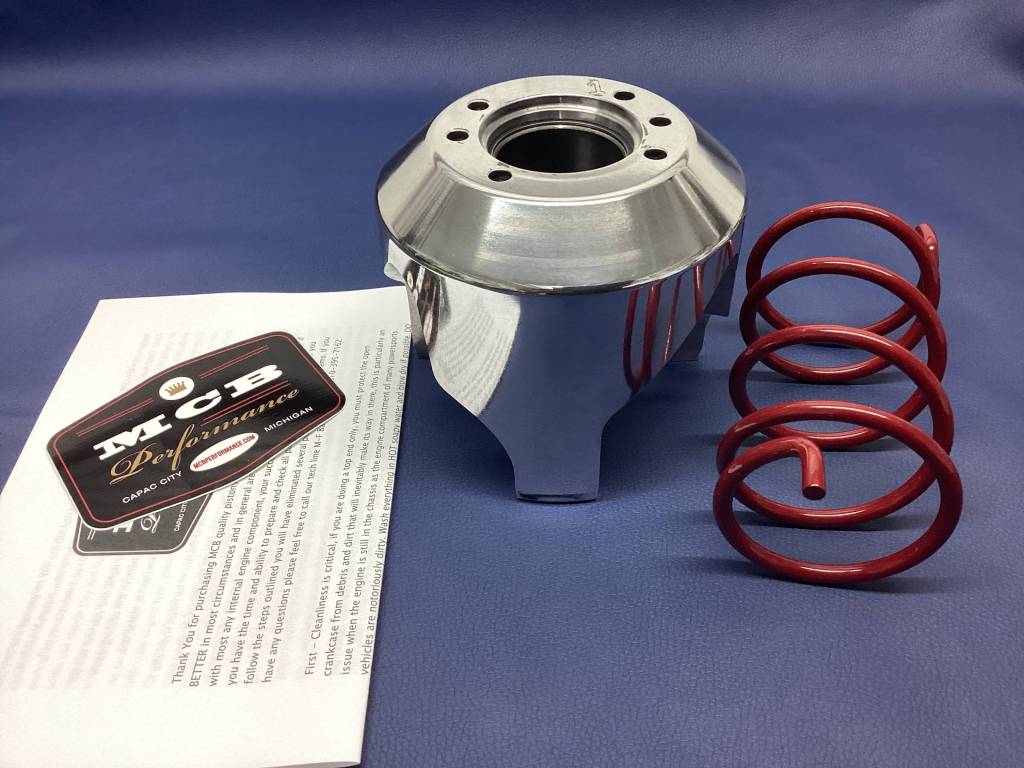

Customers using tires that are +3" or larger than stock, should install this MCB HD secondary spring into the secondary clutch. This is for higher load situations (large tires do this by nature) and holds the belt better as well as holds initial upshift back slightly longer. This is also ideal for mud or high load type riding (rock crawling).

Add HD large tire sec spring

- Add HD large tire sec spring -

* required

For proper calibration of your clutch purchase we need to know the HP horsepower level of your Maverick

What HP level is your Maverick

- What HP level is your Maverick -

* required

This option is for adding a fail proof belt removal / install tool. This lightweight compact billet aluminum part simply threads into the female thread of the hollow shaft on all Maverick X3 and HD8/9 and 10 secondary clutches. Then you simple thread the side mounted bolt in and it securly opens up the secondary clutch for easy belt removal and install. Works on all X3 and HD8/9/10 models 2016-current regardless of the style secondary clutch you have on your machine (unless it's aftermarket)

Add Secondary Clutch Belt Openin

- Add Secondary Clutch Belt Openin -

* required

Add a Can Am X3 Secondary bolt and washer, Part number 420441990 / 420427243. These bolts are designed for one time use.

Bolt and Washer Kit

- Bolt and Washer Kit -

* required

This option allows you to choose between an OEM BRP secondary clutch or an MCB custom secondary with our exclusive "Tuff Wheel Rollers" and all billet helix.

OEM or MCB style secondary

- OEM or MCB style secondary -

* required

Larger tires apply more load and stress to the clutches, it's effectively like changing the gear ratio. Large tires significantly reduce overall performance if not properly compensated for. MCB custom calibrates all clutches for tire size, elevation, and riding style by installing the proper spring and helix for your specific parameters. When you see +1-2" or +3-4" this means that your current tires are 1-2" or 3-4" taller than stock. So take a X3 for example, they typically come with 30" tires. If you have 32" tires, then that is a +2". Select your tire size

Choose your tire size

- Choose your tire size -

* required

In order to calibrate your clutch properly give us your typical riding style.

Riding style

- Riding style -

* required

We need to know your elevation in order to calibrate your clutches properly. High elevation (thin air, less oxygen) robs horsepower from the motor and clutching needs to be adjusted for this accordingly.

Choose your elevation

- Choose your elevation -

* required

Please type out your year make and model * required

Qty:

Description
Details
Shipping
Reviews

Description

- Precision balanced and works with your primary clutch and uses the same belt.

- Superior belt squeeze, reducing heat and increasing belt life, putting all the energy to the ground!

- Improved torque and clutch response.

- Properly set up for your modifications, tire size, elevation, and riding style. Example: If all you do is low end rock crawling, or low end deep mud riding we can adjust the clutch to perform more specifically to that style of riding. Large tires take a lot more inertia to turn, robbing low end torque and acceleration. We can make adjustments to give that performance back!

Replaces 420280636 sliding pulley assembly, 420280626 outer half pulley assembly, 420686738 driven pulley

1- YEAR WARRANTY!!!
