Polaris RZR 800,2008-2014 Razor MCB performance Primary drive clutch and Secondary driven pulley clutch combination 1322996, 1322920, 1322851, 1322920, 1322749, 1322743

Best replacement upgrade primary drive and secondary driven clutch Polaris RZR 800, 800, XP XP4 side by side UTV 2008-14

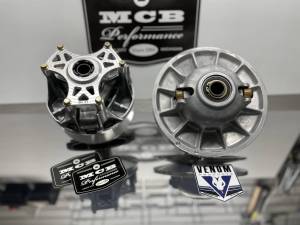

2008-2014 Polaris RZR 800 primary drive clutch assembly fully calibrated combined with a TEAM TIED secondary roller clutch.
- 1 Fully assembled Primary Drive clutch for your 2008-14 RZR 800, calibrated for tire size, 2-4 seater, riding style and elevation. (All prompts at checkout)
- 1 Fully assembled secondary driven clutch calibrated for your tire size, 2-4 seater, elevation and riding style.
- MCB helpful hint clutch tuning tips
- MCB Stickers
Pricing: $699.95

Customize Your Item

- 2 or 4 seater -
 * required
- -
 * required
- Polaris clutch bolt 7518412 was -
 * required
- Level of engine Braking -
 * required
- High Load Lg.Tire Sec. Spring -
 * required
- Riding style -
 * required
- Select your tire size -
 * required
- Choose your elevation -
 * required


MCB Polaris RZR 800 primary drive clutch and secondary driven clutch combination FOR ALL 2008-14 models.

Both clutches come fully calibrated ready to mount. Customized if you have oversize tires by choosing the appropriate box / tire size. We can also custom tune your clutch for specific applications. Rock crawling where high speed is not a need. Deep mud only where all you want is lots of low end torque. High speed trail of seasonal road running where you'll be in the mid to higher RPM's most the time. We can custom tune for your needs. In all cases the clutch comes with some adjustability by adding or subtracting weights. This is easily done with no special tools. You do not even need to remove the primary spring, or even take the clutch off the machine for that matter. Additional weights and spring rates are available for those need wide variation in adjustability.

This primary clutch is our own design. It is a replica of the OEM Polaris primary except our clutch uses superior bushing material. Our faceplate is an all billet design. Our main post is 38mm instead of stock 28mm diameter. This allows our faceplate bushing to have 64% more surface area. This significantly stabilizes the moveable sheave in staying parallel to the fix sheave. This results in less "clutch binding", reduces heat and results in an overall more durable and smoother shifting clutch. Our open style faceplate has more effective cooling. The billet design is stronger and doesn't deflect. This prolongs the spider puck life by not distorting the moveable sheave towers that the spider pucks push off of. Our spider pucks are 100% PHENOLIC. Our weights are "bushed" unlike the factory and other aftermarket clutches that use steel on steel weights and pins. We use only the highest quality alloy materials for the sheaves and nitride coated tool steel on the main shaft and crankshaft mounting countersink area. The clutch is precision balanced.

The secondary clutch is a match calibrated full assembly with helix and spring already installed. Helix angle and spring depend on 2 vs 4 seater, tire size, elevation and riding style. (see options at checkout). This team tied design is identical to the snowmobile TEAM TIED design that we use with snowmobiles that have 320HP! This is a TRUE TIED roller clutch! Unlike the Polaris TEAM BOSS design that relies on the transmission shaft to assembly the sheaves one, this clutch has it's own common shaft that it is assembled on. This results in a TRUE TIED design with zero play / bind between the sheaves. It uses dual rollers inside and outside (TIED) unlike your factory single sided roller system that binds upon load once there's any wear in the bushings. Runs significantly cooler and smoother than the OEM design.

We calibrate each clutch that leaves here for 2-seater vs 4-seater, Tire size, riding preferences, etc. (see prompts at checkout)


  • 23431160
  • 23431160
  • MCB
  • New


Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W22.0000” x H12.0000” x L12.0000”
