Additional Images

Arctic Cat driven secondary clutch, Team tied roller, keyway, 1998-04 models, calibrated bolt on assembly. F7, F6, F5, Firecat, ZR, ZL, ZRT, Thundercat, 600, 700, 800, 900, 1000

Arctic Cat driven secondary clutch, Team tied roller, splined, 2012-15 models, calibrated assembly.

23431142

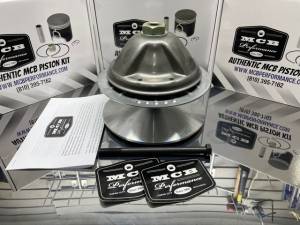

This is a complete secondary / driven clutch assembly for all Arctic Cat models 1998-04 with the keyway jackshafts (see application chart in extended description). We build the clutch here prior to shipping for your exact year, make and model. We build it based on the information you will have to fill out at checkout (model, track length, elevation, modifications). There are several factors that determine which helix angle and spring rate to use for your model. It is important that you give us the proper data in order to calibrate your clutch properly.

MCB in conjunction with TEAM Industries is proud to announce the most advanced driven clutch in the snowmobile industry. The TEAM Tied Driven roller Clutch is an improvement from the TSS-04, and all OEM clutches that don' already come from the factory with a TEAM tied roller. Why?
- The moveable sheave opens axially to the stationary sheave without rotational movement. This translates to no scrubbing motion on the belt face producing less heat and friction.
- Being "tied" with two sets of rollers (internally and externally) along with wide, durable and spaced bushings this secondary does not "bind" upon the belt pulling on the sheaves, unlike all other designs in the industry.
- All torque is transmitted through the helix, making clutch tuning much more precise. This clutch was developed using the extensive testing and design resources.
- Instant Back Shift
- Improved Upshift
- Cooler operating temps / belt temps
- Increased Belt Life
- No Engine Reverse Clunk
- Unrivaled Torque Sensing
- Greater Efficiency Allows Lower Spring Rates
- Higher Top-End Speed Capability
- Rated and tested on sleds with as much as 320 HP!
- Used on all MCB shop and personal sleds where applicable.
- Exterior belt ride height adjustment
- Precision balanced
- Uses your same OEM belt application
- Complete with all new mounting hardware
- Alignment not necessary if your stock clutches are currently aligned.
- Alignment instructions and technical help available if necessary
- 1 year warranty


Pricing: $449.95

Customize Your Item

- -
 * required
- -
 * required
- -
 * required
Qty:

Description

Application: Replaces all "Reverse cam" style secondaries (see photo)

- Not for 2004-2011 Models that came with Diamond Drive!!

- ZR / ZL 500 - 1998-02
- Firecat 500 - 2004-06 w/o Diamond drive
- Firecat/Sabercat 600 - 2004-06 w/o Diamond drive
- ZR / ZL 600 - 1998-03
- ZRT / EXT 600 Triples 1996-02
- ZR / ZL 700 - 1999-01
- F7 - 2003-04 all options w/o Diamond Drive
- ZR / ZL 800 - 2001-04
- ZRT 800 all years
- Mountain Cat 800 twin - 2001-03
- ZR 900 2002-04 w/o Diamond drive
- Mountain Cat 900 - 2003-06 w/o Diamond drive
- Thundercat 900 / 1000 all years
- Applicable to many other models from 1997-06 not listed (440's 580's, touring models etc.) that came with the reverse cam style secondary clutch. (see 4th photo) Email for your application if not listed.

New Primary clutches available as well, and clutch combination packages available. Meaning MCB builds you a new Primary and Secondary clutch as a combination package.

Details

  • 23431142
  • 23431142
  • TEAM
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W14.0000” x H14.0000” x L10.0000”
