Arctic Cat F5, Firecat 500, Sabercat 500, Crossfire 500, M5, Crossfire 500, Sno Pro 500, T500, ZR4000 / LXR / RR, CF5, Piston kit & Gasket set top end repair kit 2003-17 CAST 71.00mm bore

Arctic Cat F5, Firecat 500, Sabercat 500, Crossfire 500, M5, Crossfire 500, Sno Pro 500, T500, Z4000, CF5, Piston kit & Gasket set top end repair kit 2003-17 CAST 71.00mm bore 3006-427, 3006-746

23430864

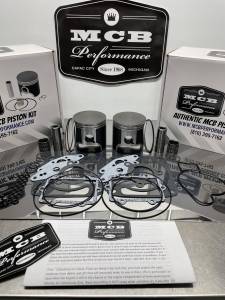

Complete Top End Piston kit for all 2003-2017
Inlcudes:
- 2 Hypereutectic cast pistons
- 4 Premium ring set
- 4 Sure clip Circlips
- 2 Wrist pins
- 2 Wrist pin bearings
- 1 Top end gasket set. Base gaskets are coated metal as original. All necessary o-rings are included but got left out of the photo
- 1 Optional full engine gasket set with crank seals at checkout.
- MCB helpful hint instructions with Torque values
- Remanufactured cylinders available as well.- If you want a Premium forged version of this piston see our SKU#
- Replaces OEM piston p/n 3006-427 / 3006-746

Pricing: $269.95

Customize Your Item

- -
 * required
Qty:

Description

Application:
Crossfire 500 2007-08
F5 all options all years
Firecat 500 all years all options
M5 all years all options
Sabercat 500 all years all options
Sno Pro 500 2010-14
ZR4000 - 2015-17

Details

  • 23430864
  • 23430864
  • MCB
  • New

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W10.0000” x H8.0000” x L6.0000”
